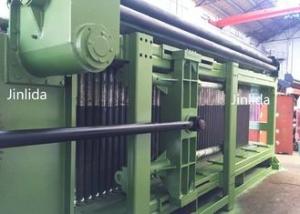

Wire Diameter 1.2mm Heavy Duty Hexagonal Wire Netting Weaving Machine
Quick Detail:
1) Mesh sizes: 80*100mm
2) Max netting width: 1200mm
3) Max galvanized wire diameter: 31.2mm
4) Power: 22kW
5) Theoretic output: 83m/hr
Descrition:
- JINLIDA is professional manufacturer, not trading company, we supply advanced machine to
oversea clients directly only. We can produce the machine as your requirement.
- Model GLL (T) is a light series of mesh weaving machines, including 7 different types of machines,
i.e. with which the galvanized hexagonal wire mesh of different apertures can be woven
- The maximum diameter of the wire that can be woven on this type of machine is 1.2m. This series
of product include two types of machines, i.e. the single-head and the double-head machine
- The maximum weaving breadth of the single-head machine is 1.2m and that of the double-head
machine is 2.2m
- Separated from the middle, the double-head machine can weave two 1m wide meshes
simultaneously
- Type 1/2' and Type 3/4' machine can weave trapezoidal wire-mesh after necessary refitting
- This kind of wire-mesh is widely used as the skeleton of the asbestos shingle
Specifications:
1) Mesh sizes: 60*80mm
2) Max netting width: 1200mm
3) Max galvanized wire diameter: 1.2mm
4) Power: 22kW
5) Theoretic output: 142m/hr
6) Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically
7) Infrared ray safety protection system (option)
8) Automatic oil system
Competitive Advantage:
1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area
of gabion machine making for 20 years.
2. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to
process, so the quality can be ensured.
3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
